1.0 Introduction:

HDMI Splitter is a product which can distribute HDMI signal without loss to one or more high definition display device such as HDTV. It can optimize your home theatre system to the best effect.

HDMI signal is distributed from source device such as DVD, Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat panel Display.

2.0 Features:

1.       One HDMI input signal split to four HDMI sink devices(four outputs is the RJ45 output).

2.       Fully HDMI 1.3 specification compliant. It is applicable to source device and high definition display device ,such as DVD and   HDTV which have HDMI Ports or digital ports and are compliant with HDCP protocol.

3.       Support high resolutions up to 1920*1200,including 480i/p,576i/p,720i/p,1080i/p.

4.       Support 30/36 dark, extended color space support, including:SYCC601、Adobe RGB、AdobeYCC601.

5.       Blu-ray DVD 24/50/60fs/HD-DVD/xvYCC.

6.       Audio formats DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3 and DSD.

7.       Extend the transmission distance and improve transmission signal.

8.       Compatible with DVI by using HDMI to DVI adapter.

9.       Plug- and -play.

10. Support output up to 60metres CAT6 cable.

11. Metal casing design and overall shielding without signal interference.

12. Led indicates signal and power mode.

13. Power supply (please refer to technical parameter).

14. Support 3D

3.0 Packaging accessories:

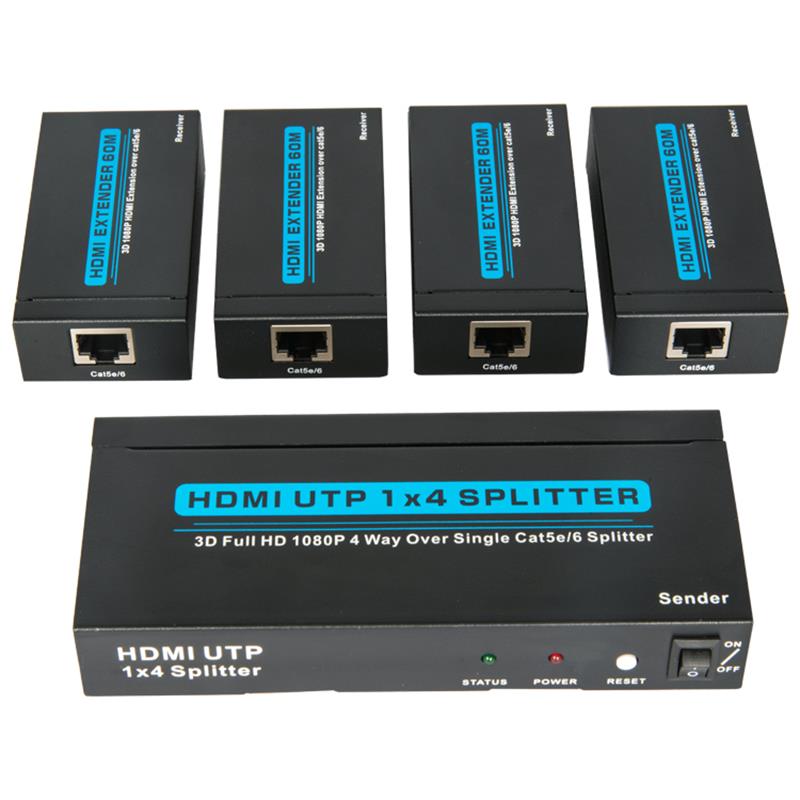

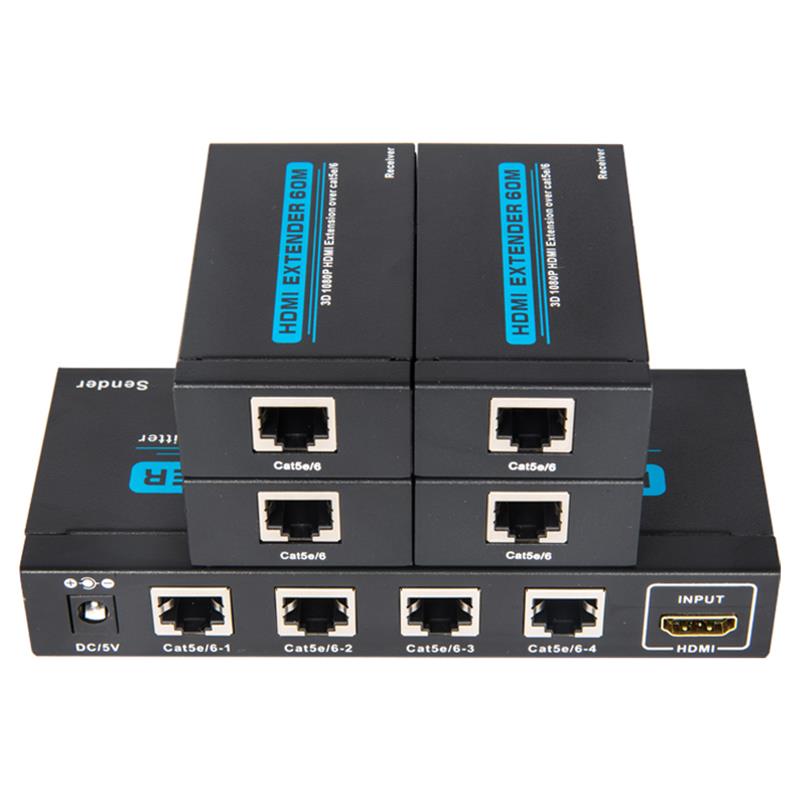

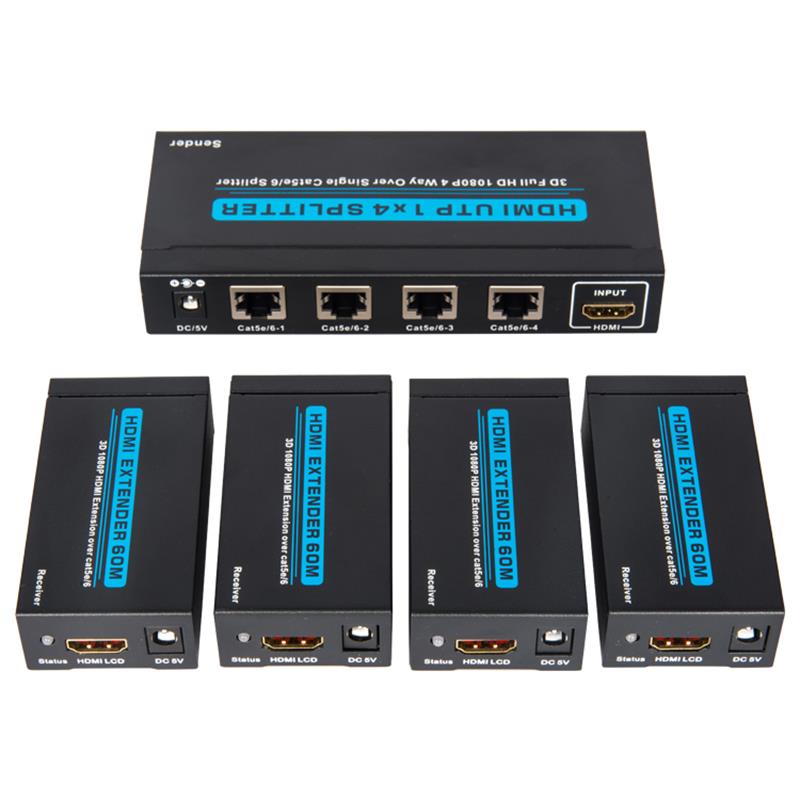

1. HDMI 1×4 Splitter------------------------------------------------1 Pcs

2. HDMI Receiver---------------------------------------------------4 Pcs

3. 5V DC Power Adaptor-------------------------------------------5 Pcs

4. User Manual-------------------------------------------------------1 Pcs

4.0 Technical parameters

HDMI resolution-----------------------------------------3D /1080p/1080i/720p/576p/576i/480p/480i

Support video color format-------------------------------------------------24bit/deep color 30bit,36bit

Support audio format -------------------DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth-----------------------------------------------------------------------------------------250MHz

Max baud rate----------------------------------------------------------------------------------------6.25Gbps

Input/Output TMDS signal--------------------------------------------------------0.5~1.5Volts p-p(TTL)

Input/Output DDC signal------------------------------------------------------------------5Volts p-p (TTL)

Input cable distance----------------------------------------------≤10m AWG26 HDMI standard cable

Output cable distance--------------------------------------------------------------- ≤60m Cat5e/6 cable

Max working current---------------------------------------------------------------------------------1800mA

Power adapter format Input ------------------AC (50HZ, 60HZ) :100V-240V; Output: DC5V/2A

Operating Temperature range--------------------------------------------------------------(-15 to +55℃)

Operating Humidity range-------------------------------------------5 to 90%RH (No Condensation)

Dimension (L x W x H)---------------------------------------------------------Splitter:150x64x25 (mm)

                                                                                                              Receiver:82x43.5x25(mm)

Weight------------------------------------------------------------------------------650g(spilitter+Receiver)
